Why buy your Lynx system from us? Our timing expert Doug Lynch is a former sales rep from Lynx so nobody knows the systems better than we do. Use Paypal Credit to defer your payments over 6 months interest free! Designed by Lynx - the leader in Digital Photofinish Timing Systems. Connect your PC to an EtherLynx camera and you have a world-class photofinish system! All systems:
Run on any Windows computer.
Unlimited Capture time-can be used for Cross Country.
Automatic data interface with Wind Gauges, Scoreboards and raceclocks. (excludes scholastic package)
Integrates with all popular track meet software.
Simultaneous Capture and Evaluation on a single computer, eliminates the need for expensive networks.
Designed and built in the USA.
Water Resistant Camera Housing
All cameras in all packages are COLOR and powered by the network cable (power over ethernet or "p-o-e"), no AC power needed.
Modular Design - You can add optional features at a later date.

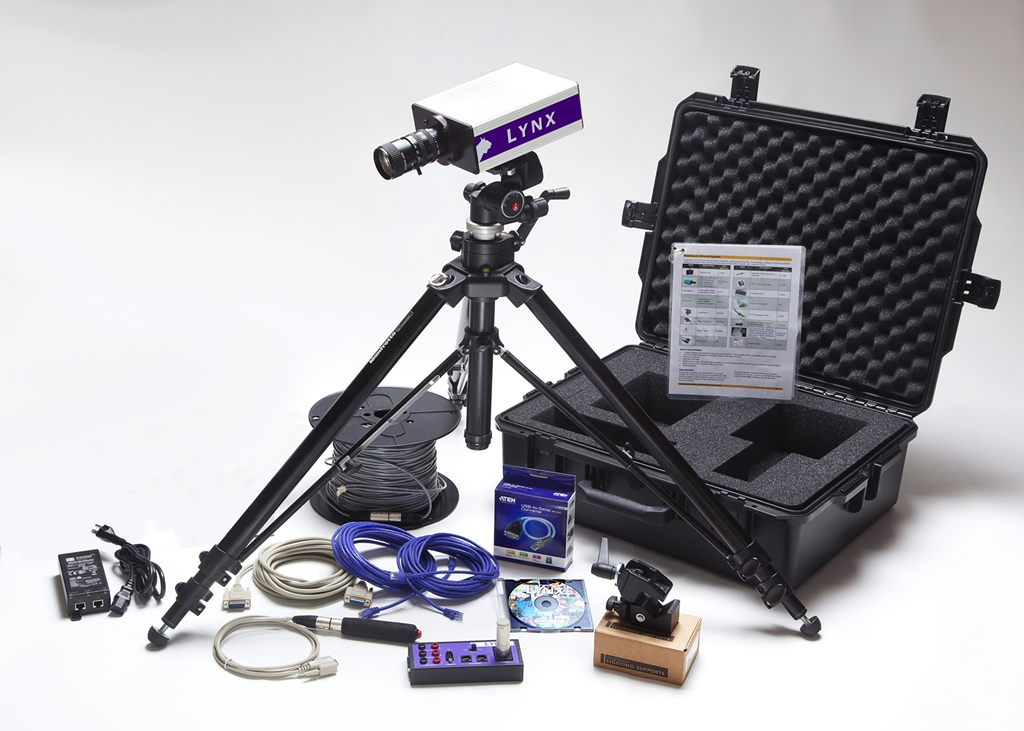

COMPETITION PACKAGE: The Competition package is an all-inclusive, single-camera,color photo finish system for athletics. It needs only a computer to deliver I.A.A.F. compliant, Fully Automatic Times (FAT) at track and field meets of any size.
Camera: EtherLynx Vision, 2,000 frames/second, full color images, timer-enabled, fully upgradeable

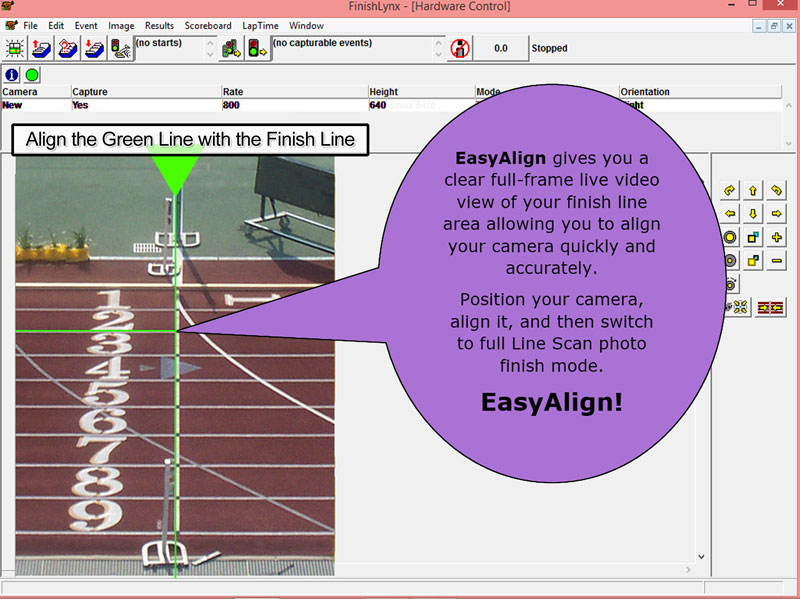

EasyAlign Full-Frame Video Alignment Mode
High-Resolution Option (2,000 fps x 1280 pixels of image height)
C-mount f1.2, 8-48mm Manual Zoom Lens
Wired Start System & Capture Button
All-inclusive Power, Ethernet, & Start Cable Set
Tripod & Mounting Hardware for Precision Adjustment
Built-in Interface to Scoreboards and Wind Gauges
Full-Access to Lynx Technical Support, 1-Year Renewable Warranty
COMPETITION ELITE PACKAGE: The COMPETITION ELITE Package includes all the components of the COMPETITION Package – Plus a Remote Control Zoom Lens, and a complete RadioLynx Wireless Start system. With the addition of these components, there is no need to run long start cables, or use a ladder to adjust the lens, so the set-up and operation of the system becomes even easier.
Camera: EtherLynx Vision, 2,000 frames/second,full color images, timer-enabled, fully upgradeable
EasyAlign Full-Frame Video Alignment Mode
High-Resolution Option (2,000 fps x 1280 pixels of image height)
RadioLynx Plugin for FinishLynx, Automatic Capture Mode (ACM) Plugin
LynxPad Multi-Language Meet Management Software
CHAMPIONSHIP PACKAGE: The CHAMPIONSHIP PACKAGE is an IAAF-approved athletics timing system that includes the full-color EtherLynx Vision photo-finish camera and a time-synchronized IdentiLynx video camera. This package includes all the components of the Competition Elite Package (like remote camera/lens capabilities and RadioLynx wireless start) as well as an IdentiLynx camera, ACM software plugin, 9-digit LED display, and WA-approved wind gauge. Plus all the components can be controlled directly from the FinishLynx timing software.
Camera: EtherLynx Vision, 2,000 frames/second, full color images, timer-enabled, fully upgradeable
EasyAlign Full-Frame Video Alignment Mode
High-Resolution Option (2,000 fps x 1280 pixels of image height)
C-Mount f1.2, 8-48mm Motorized Zoom Lens
IdentiLynx Full-Frame Video Camera (30 fps, 720p)
Ultrasonic Wind Gauge (WA compliant)

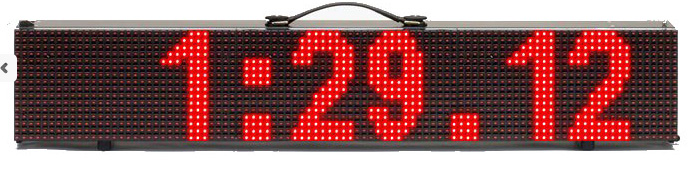

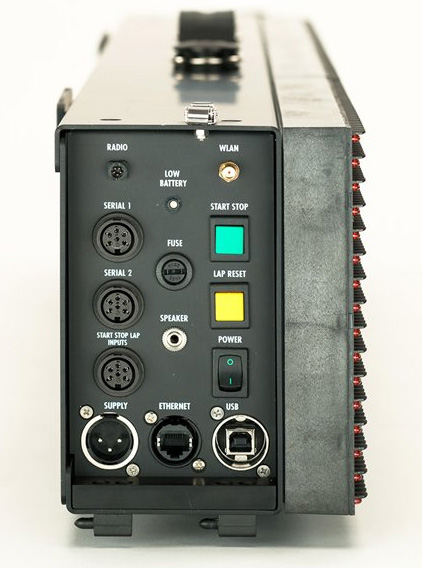

9-Digit Alphanumeric LED Display (with tripod, bag and charger)
Remote Lens
Remote Camera Positioner
RadioLynx Wireless Start (Receiver & Transmitter)
All-inclusive Power, Ethernet, & Start Cable Set
Tripod & Mounting Hardware for Precision Adjustment
CHAMPIONSHIP ELITE PACKAGE: The Championship Elite Package includes two 2,000 fps EtherLynx Vision cameras so you can capture full-color photo finish images from both sides of the finish line. The package also includes an IdentiLynx full frame video camera so you can produce head-on video that is time-synchronized with your results.
Network COM Port Plug-in, Automatic Capture Mode (ACM) Plugin RadioLynx Wireless Start Plugin
LynxPad Multi-Language Meet Management Software
GRAND PRIX PACKAGE: The GRAND PRIX package is a world-class athletics timing system that includes two independent photo finish cameras and start systems for full timing redundancy. Because the
EtherLynx Vision and PRO cameras are linked to separate wireless start systems, it effectively creates two independent systems that capture simultaneously. This satisfies all the IAAF standards recommended for championship-level meets.
Network COM Port Plug-in, Automatic Capture Mode (ACM) Plugin, RadioLynx Wireless Start Plugin,
LynxPad Multi-Language Meet Management Software
GRAND PRIX ELITE PACKAGE: The GRAND PRIX ELITE Package is the most powerful athletics timing solution offered today. It includes all the cameras, software, displays, and wireless accessories you need to produce world-class photo finishes at international events. The system includes everything from the Grand Prix package plus a number of add-ons suitable for major IAAF meets.
RadioLynx Only option (see related items) is for existing systems or add it to your basket for Competition package.
NEW: add an internal RadioLynx receiver to any camera. Choose Internal Radiolynx option in selection list per camera. You still need a transmitter and the plugin so this is in addition to a standard RL add-on.
North American sales only, please contact Lynx for overseas sales. All systems must be licensed to an organization (school, timing company, city, etc..) and are non-returnable.
To avoid delays, please provide a school/organization name in the shipping address when ordering (required by Lynx). We will email you for this info if you forget.
SHIPPING WILL BE REFUNDED DOWN TO ACTUAL AFTER LYNX SHIPS THE ORDER. THE WEBSITE WILL OVERCHARGE TO COVER THIS. EMAIL FOR A CUSTOM QUOTE.
LYNX ITEMS ARE NOT STOCKED, ALL ITEMS ARE SUBJECT TO BACKORDER AT LYNX.
