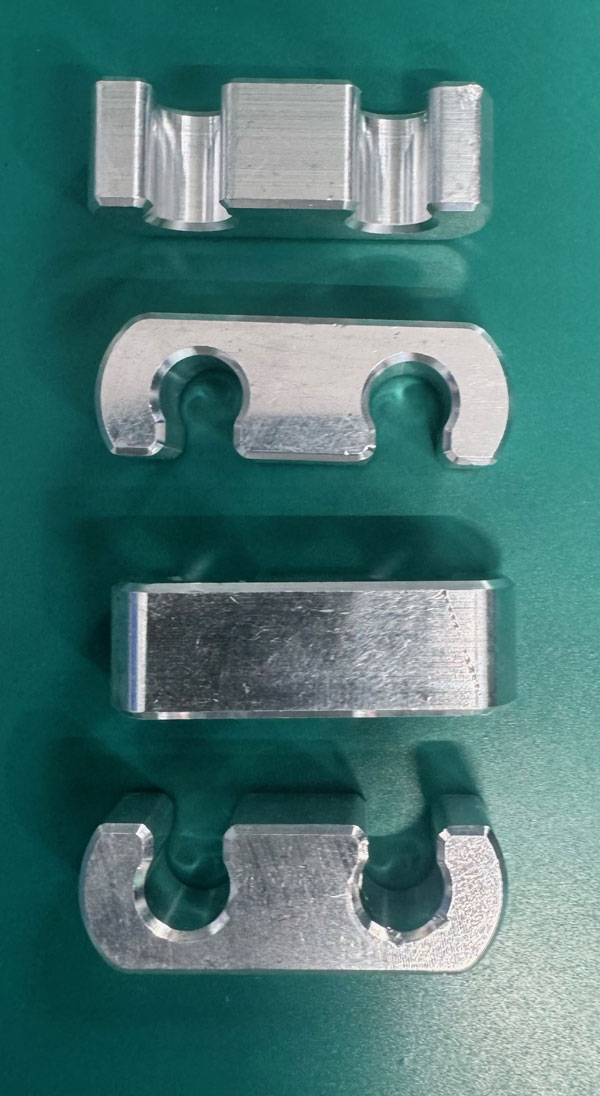

Feibot FMA2 Foldable Antenna Mat Clips

MAT IS UNAVAILABLE - CONTACT FEIBOT DIRECTLY. THIS PAGE IS FOR THE CLIPS ONLY.

NON-RETURNABLE. ALLOW 4-6 WEEKS FOR DELIVERY. ALL SUPPORT GOES DIRECT THROUGH FEIBOT.

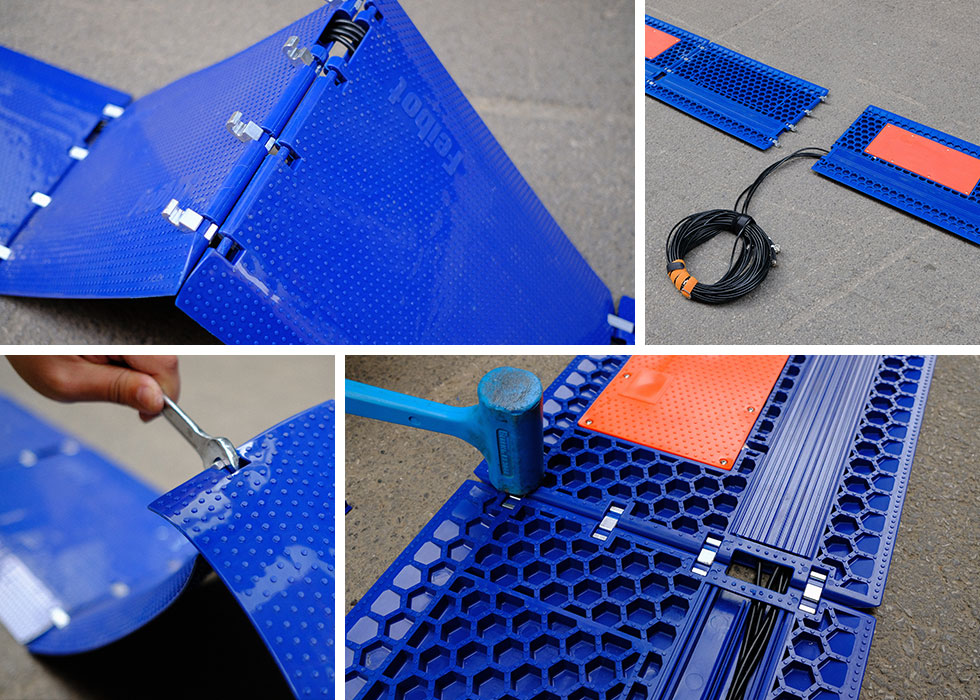

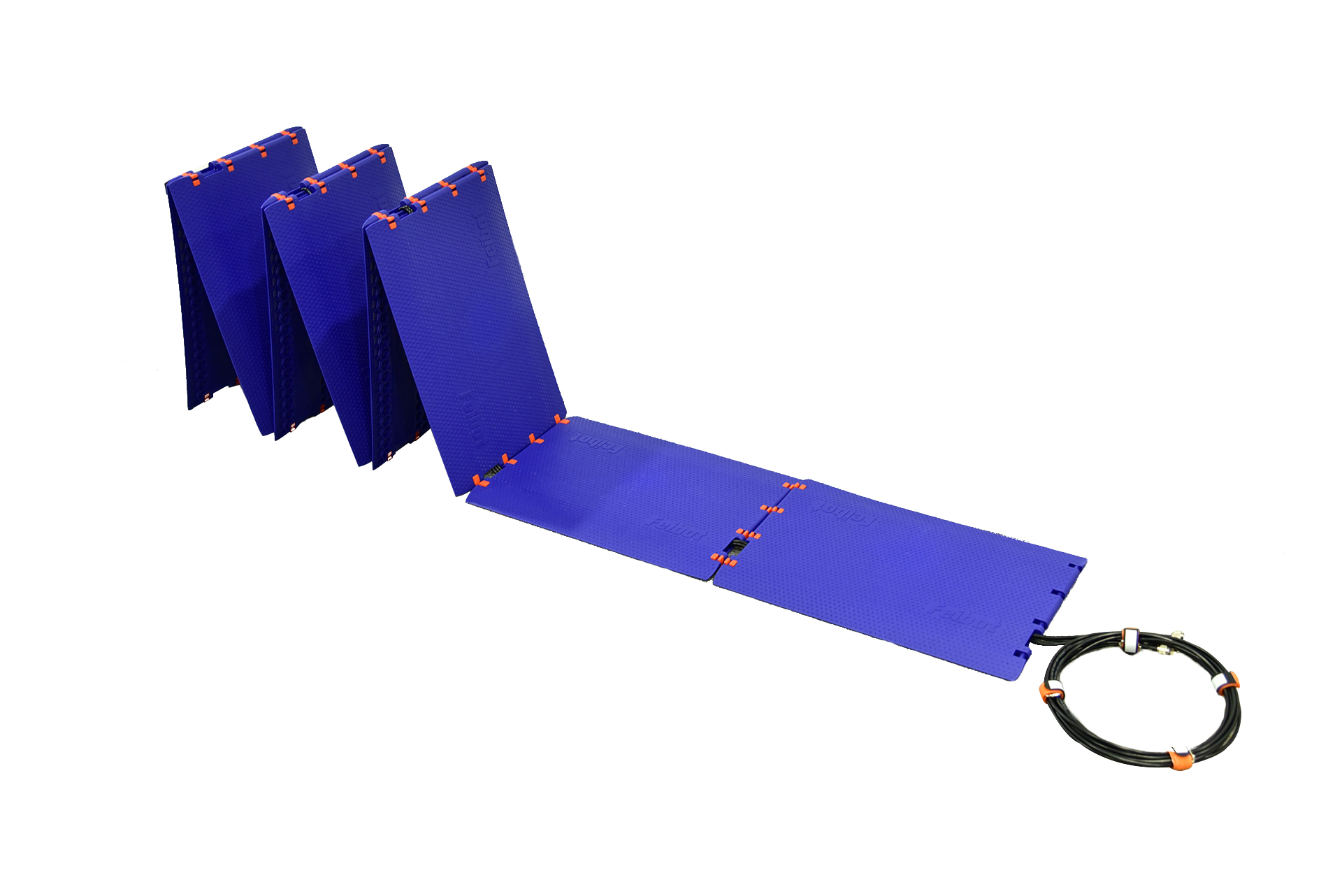

Connectable and detachable, can customize the length as you need. Foldable, easy to transport and easy to set up. Made of high-quality polyurethane, abrasion-resistant, load-bearing, anti-slip during rain.

4m Mat Dimension: 500*350*18mm
Mat Material: Polyurethane
Hinge Material: CNC aluminum alloy / Nylon
Cable: CQR200,8pcs(length:2M-9M)
Connector type: BNC male, TNC male, RP TNC male
Frequency: EU 865-868MHZ, USA 902-928MHZ, customizable
Chip orientation: vertically or horizontally

VSWR: <1.5
Band width: 40MHz
Gain: 6dBi
Impedance: 50Ω
Lightening Protection: DC to ground
Working temperature: -40~+85℃

Packing info:

Packing Size: 53*37*19CM for 4M
Gross weight: 4M: 19KG 8M: 38KG

CHOOSE 4m OR 8m LENGTH
