Lynx IdentiLynx Cameras

IDENTILYNX is an Ethernet based full-frame digital video camera that when combined with any EtherLynx line-scan photo finish will produce a totally integrated photo finish solution that maximizes the functionality of each technology.

The outputs from the two types of cameras are fully time synchronized so that it is possible to move the cursor in the photo finish window and watch the video jump to precisely the same moment in time. What is more, you can advance and rewind the video one frame at a time to easily identify athletes from bib numbers or team affiliation.The IdentiLynx package has everything necessary for use right out of the box including the IdentiLynx camera, lens, tripod, PoE adapter, cables, software and a protective carrying case.

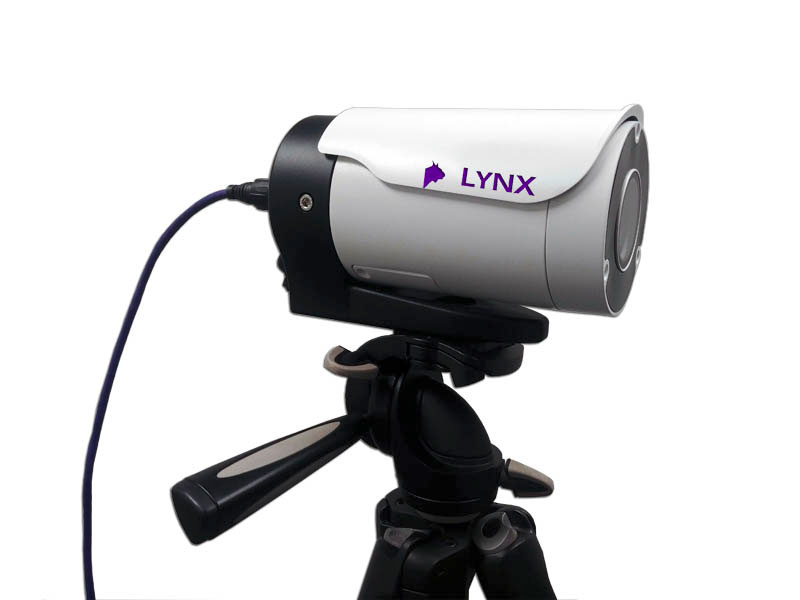

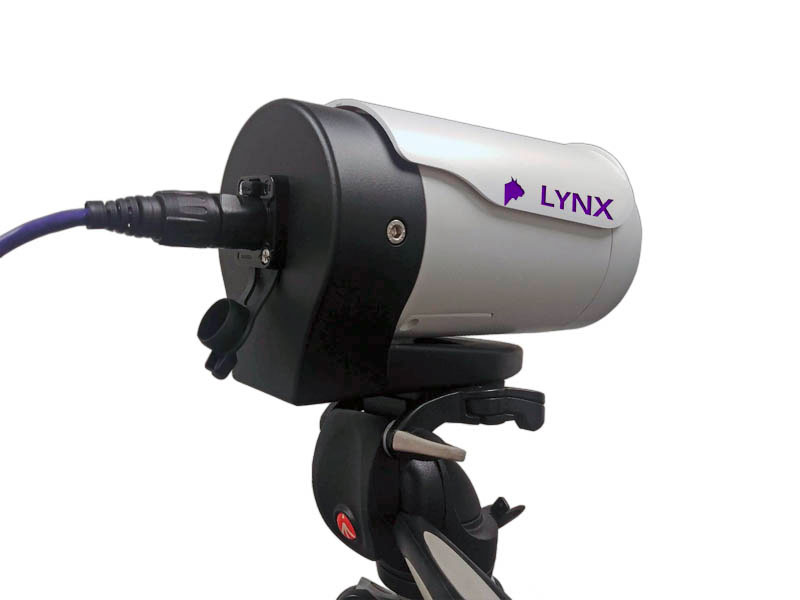

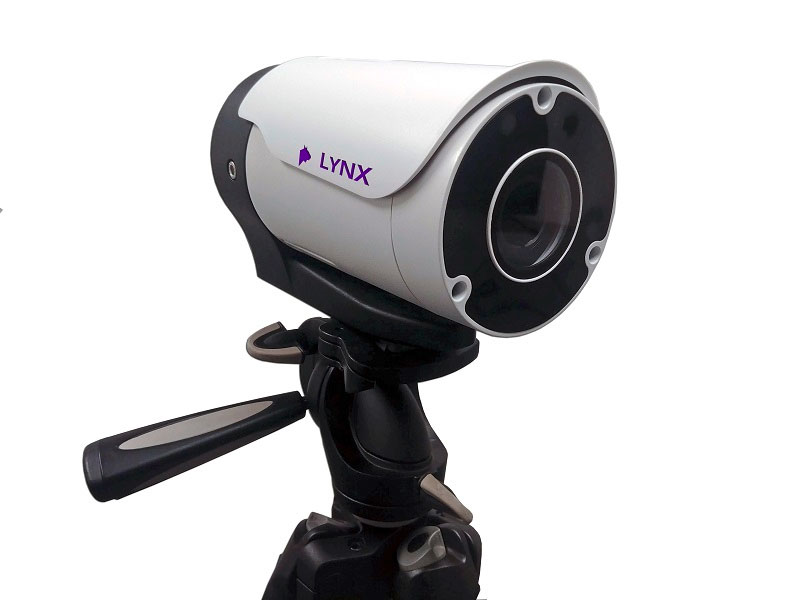

The IdentiLynx SR is an Ethernet-based, full-frame digital video camera that integrates with EtherLynx photo-finish cameras to produce time-stamped finish line videos. IdentiLynx video cameras provide high-resolution, front-facing video that is time-synchronized inside FinishLynx to quickly and accurately identify competitors at the finish line. IdentiLynx SR video is time-synchronized with the FinishLynx capture so you can click anywhere on an image and watch the head-on video jump to precisely the same moment; this allows for easy athlete identification using bib numbers or team affiliation.
The IdentiLynx SR replaced the standard IdentiLynx+ in July 2022.

The IdentiLynx SR (Standard Resolution) camera captures up to 1280 x 960 pixels at 30 fps and offers several improvements over past IdentiLynx models. The camera includes an auto-iris motorized lens so the zoom and focus can be adjusted remotely within the FinishLynx software. In addition, it comes with auto-Iris which automatically adjusts, leaving one less thing to worry about during an event. This model is exceptionally sturdier than past models and is water-resistant, protecting the lens and rear connections from moisture and damage better than ever. Set up the IdentiLynx SR at your finish line and start capturing high-definition, time-stamped videos at all your races.

SR Resolutions:

320 x 240 @ 30 fps
720 x 480 @ 30 fps
800 x 600 @ 30 fps
1280 x 720 @ 30 fps
1280 x 960 @ 30 fps

The IdentiLynx HRS offers many advantages over the standard IdentiLynx, including higher image resolution and speed, variable frame rates, and more capture modes. The standard IdentiLynx camera maxes out at 1280 x 960 pixels, while the IdentiLynx HRS captures up to 3840 x 2160 at 10 fps or 1280 x 720 at 60 fps. The IdentiLynx HRS is part of the next-generation of IdentiLynx cameras which replaces the older IdentiLynx XR+ (Extended Resolution), which is no longer available.

HRS Resolutions:

320 x 240 @ 60 fps
720 x 480 @ 60 fps
800 x 600 @ 60 fps
1280 x 720 @ 60 fps
1280 x 960 @ 45 fps
1920 x 640 @ 45 fps w*
1920 x 1080 @ 30 fps
2048 x 1536 @ 20 fps
2304 x 768 @ 30 fps w*
2592 x 1944 @ 15 fps
2688 x 1520 @ 15 fps
3072 x 1024 @ 20 fps w*
3264 x 1840 @ 10 fps
3840 x 1280 @ 15 fps w*
3840 x 2160 @ 10 fps
w* denotes wide format

To avoid delays, please provide a school/organization name in the shipping address when ordering (required by Lynx). We will email you for this info if you forget.

The Plexiglass covers are not currently available. A new model may be designed shortly.

Includes camera, lens, tripod, PoE (power over ethernet) adapter, cables, carrying case and software

North American sales only, please contact Lynx for overseas sales.

GROUND SHIPPING ONLY - CALL FOR RUSH ORDERS, LYNX TAKES 4-7 DAYS PROCESSING TIME.

Quick Start Guide
