RFID Timing Systems

The Feibot FB2-LED clock uses high-brightness LED beads, with the ability to change the color and time of the beads through the switches. It allows for the synchronization of multiple clocks in real-time with precise timing, with an error of less than 0.05s.

1. Multiple color options: available in six colors.

2. Adjustable brightness levels: cater to different lighting preferences and environments.

3. High visibility: offers bright display with clarity.

4. Multiple control methods: supports phone app, starting gun control.

5. Energy efficiency: can use one side only.

6. Multiple functions: displays time and runner results, count up and count down, current time display, etc.

7. Backup power supply: supports external power supply to ensure extended battery life for endurance events.

ALLOW 2-3 WEEKS DELIVERY TIME

Time format: H:MM:SS (12/24 hour format)

LED Dimensions: 920*250*90MM

Digit Height: 197*123MM

Brightness: 5%~100%

Color: Red, Green, Blue, Yellow, Purple, cyan

Power supply: Built in lithium battery, 12 VDC

Battery life: 6 hours of operation at 50% brightness

Connectivity: Bluetooth, cable

Mounting options: On top of car, on tripod, on arch

Control method: Smartphone app, starting gun

Material: Aluminum & Steel

LED weight: 9KG

Metal box dimensions: 1015*375*140MM

Metal box weight: 7KG

ALLOW 4-6 WEEKS FOR DELIVERY. NON-RETURNABLE. ALL SUPPORT PROVIDED DIRECT FROM FEIBOT.

• Touch screen operation
• All in one, carry and go device
• Cloud management of data
• Accurate and reliable reading ability
• Internet time synchronization, time error less than 0.05s
• Battery capacity display LED
• Solid safety box to protect the device

Model Number: F800

Frequency: 865-868mhz/902-928mhz

Protocol: ISO-18000/6C; EPC C1G2
Chip: Impinj

Internal storage: 1G

Flash storage: 16G (storage for data: 6.7G)

CPU: ARM 4 core

No. of readers: 2 readers

Network interface: RJ45

Antenna connector: BNC

No. of Antenna reader port: 8 (can turn on/off each of them separately)

Antenna: support ground antenna and side antenna

Tag: can read any type of UHF RFID tag

Built-in Battery: Lithium, 12V

Operating time of battery: 12 hours reading(fully charged), 40 hours standby

Safety box: Pelican®

Working temperature: -20~+75℃

Size: 35*30*15CM

Weight: 5.7KG

Accessories: power adapter, key, touch screen pen, test card

See Manual for operating instructions.

CA Prop 65 Warning

MAT IS UNAVAILABLE - CONTACT FEIBOT DIRECTLY. THIS PAGE IS FOR THE CLIPS ONLY.

NON-RETURNABLE. ALLOW 4-6 WEEKS FOR DELIVERY. ALL SUPPORT GOES DIRECT THROUGH FEIBOT.

Connectable and detachable, can customize the length as you need. Foldable, easy to transport and easy to set up. Made of high-quality polyurethane, abrasion-resistant, load-bearing, anti-slip during rain.

4m Mat Dimension: 500*350*18mm
Mat Material: Polyurethane
Hinge Material: CNC aluminum alloy / Nylon
Cable: CQR200,8pcs(length:2M-9M)
Connector type: BNC male, TNC male, RP TNC male
Frequency: EU 865-868MHZ, USA 902-928MHZ, customizable
Chip orientation: vertically or horizontally

VSWR: <1.5
Band width: 40MHz
Gain: 6dBi
Impedance: 50Ω
Lightening Protection: DC to ground
Working temperature: -40~+85℃

Packing info:

Packing Size: 53*37*19CM for 4M
Gross weight: 4M: 19KG 8M: 38KG

CHOOSE 4m OR 8m LENGTH

UHF Side antenna:

• Frequency range: 902-928 MHz
• Bandwidth: 100MHz

• Connector: BNC or RP-TNC, please specify desired end when ordering in checkout comments.

• Polarization: Circular

CABLE MUST BE ADDED SEPARATE, SEE SELECTION LIST. ALLOW 4-6 WEEKS FOR DELIVERY.

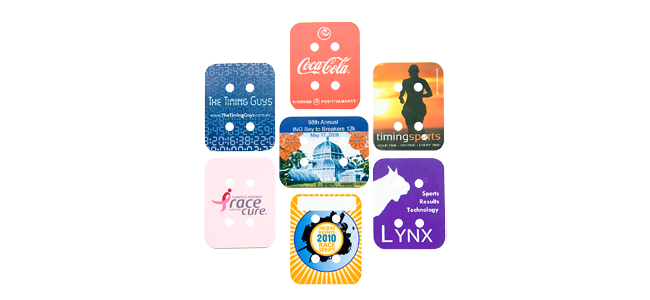

UHF passive tags.

We can encode the chip and print on the label according to requirement. 500 MINIMUM ORDER.

Price break at 1000 and 5000.

We can print and code it (customer can provide the EPC list, or their requirement, like from 1~1000, coded into 8 digits 0000 0001 ~0000 1000).

Item ships from Feibot to VS, then to customer. NON-RETURNABLE ITEM. NO REFUNDS.

You will be contacted after ordering to confirm terms of sale and specifications of the tags being ordered.

These packages and parts are for EXISTING LYNX CUSTOMERS ONLY. No Separate stand-alone orders. TAGS CAN ONLY BE ORDERED WITH A MYLAPS SYSTEM, CONTACT MYLAPS FOR ALL OTHER TAG ORDERS.

The MyLaps BibTag system is a passive rfid system that can use BibTags or ThinTags that can be read using a decoder and antennas. Antennas are typically mats for the finish line (rubber mat, Easymat, side and overhead antennas). In order to use these with your Lynx system, you may need to purchase the LapTime plugin if you don't already have them. Network cables for connecting to your Lynx system are NOT included.  NEW USERS, - YOU MUST READ THE GUIDE SO YOU UNDERSTAND ALL THE COMPONENTS NEEDED.

6 Packages are available:

• XC 4m mat system - Decoder + 4m RUBBER mat with cabling.

• Track Side antenna system  - Decoder + side antenna with cabling

• Split Timing for Track/XC system - Decoder + 4m RUBBER mat + side antenna + cabling

• 8m Mat system for wide finish lines - Decoder + 8m mat + cabling

• 4m EasyMat system - Decoder + 4m Easymat + cables

• 6m EasyMat system - Decoder + 6m Easymat + cables

The battery capacity of a 4-mat BibTag System is 10 hours. An 8-mat BibTag System is 4 hours.

Often bought parts for these system are listed in the drop down list. ALL PART ITEMS SOLD INDIVIDUALLY. Side antennas show 2 in photo, sold EACH.  Contact us for other items not shown.

BibTags - Foam backed chips you attach to your bib numbers.

ThinTags: The UHF timing solution with 1 tag and a thin spacer to save on expo space and shipping costs. The MYLAPS ThinTag is unique in the sports market and uses patented technology by MYLAPS. The MYLAPS ThinTag is a reliable UHF timing solution that reduces handling and shipping cost because of a very thin (2mm) design. The ThinTag uses a spacer that is made of spongy material that only expands when it absorbs fluids. This technology is unique in the market and patented by MYLAPS.

Dimensions: 10 x 3 x 0.2 cm / 3.9 x 1.2 x 0.08 in
Weight: 0.005 kg / 0.01 lb
Detection height: approx. 2 m / 6.6 ft
Maximum Tag passing speed 40 km/h (25 mph)

• One high-gain circularly polarized panel antenna
• One rugged mounting bracket
• 15 foot antenna cable (LMR-195, RP-TNC Male to RP-TNC Male)
• Heavy duty adjustable tripod

RFID Race Timing Antenna Kit comes with everything you need to set up a panel antenna on race day. A tripod, high-gain antenna, cable, and mounting bracket come in this kit helping to simplify your pre-race planning and setup.

• High-gain antenna for accurate reads.
• Steel Construction with Nylon Clutch and Base.
• Tripod color: black.
• Tripod weight capacity: 100 lbs.
• Adjustable tripod height range: 71 inches.
• Tripod base spread: 0-32 inches.
• Tripod tube diameter: 1.38 inches.
• Tripod leg diameter: 1.38 inches.

Operating Frequency: FCC (902-928 MHz), Global (865-960 MHz)
Polarization: Right hand circular
Gain (FCC): 9.0 dBic
Gain (Global): 8.0 dBic
Elevation Beamwidth (FCC): 63°
Elevation Beamwidth (Global): 65°
Azimuth Beamwidth (FCC): 63°
Azimuth Beamwidth (Global): 65°
MECHANICAL:
Connector Type: RP-TNC female (connects to RP-TNC male)
Cable: 4.57 m (15 ft) Antenna Cable (LMR-195, RP-TNC Male to RP-TNC Male)

CA Prop 65 Warning

The Zebra FX9600 RFID Reader delivers industry-best performance for high-volume, rugged environments. With support for PoE and PoE+, an IP 53 sealed housing rating, and eight RF antenna ports, the FX9600 brings a new level of capability to asset tracking and inventory management applications. The FX9600 supports a Wi-Fi/Bluetooth dongle for direct wireless connectivity to your Wi-Fi network, as well as Bluetooth-enabled computers and other devices. There’s no need for hard-wired connections to the access point. With a best-in-class

processor and expanded memory, the FX9600 offers the power needed to support very high traffic throughput and sophisticated software applications.

• High RF sensitivity for superior performance and efficiency.
• Most power in its class.
• Parse data at the edge with embedded applications.
• Easy, low-cost deployment with support for PoE and PoE+.
• Directly connects to Wi-Fi networks and Bluetooth-enabled devices.
• With support for Wi-Fi dongles, you can wirelessly connect your FX9600 RFID readers to your existing Wi-Fi access point — no hard-wired connections required.
• With support for Bluetooth dongles, you can connect virtually any Bluetooth-enabled host computer or handheld directly to the FX9600, increasing flexibility, processing speed and application performance.
• Reads chips from 902-928 Mhz, perfect for bib chips.
• 4 Antenna Ports


Data Sheet

CA Prop 65 Warning

The Zebra FX9600 RFID Reader delivers industry-best performance for high-volume, rugged environments. With support for PoE and PoE+, an IP 53 sealed housing rating, and eight RF antenna ports, the FX9600 brings a new level of capability to asset tracking and inventory management applications. The FX9600 supports a Wi-Fi/Bluetooth dongle for direct wireless connectivity to your Wi-Fi network, as well as Bluetooth-enabled computers and other devices. There’s no need for hard-wired connections to the access point. With a best-in-class

processor and expanded memory, the FX9600 offers the power needed to support very high traffic throughput and sophisticated software applications.

• High RF sensitivity for superior performance and efficiency.
• Most power in its class.
• Parse data at the edge with embedded applications.
• Easy, low-cost deployment with support for PoE and PoE+.
• Directly connects to Wi-Fi networks and Bluetooth-enabled devices.
• With support for Wi-Fi dongles, you can wirelessly connect your FX9600 RFID readers to your existing Wi-Fi access point — no hard-wired connections required.
• With support for Bluetooth dongles, you can connect virtually any Bluetooth-enabled host computer or handheld directly to the FX9600, increasing flexibility, processing speed and application performance.
• Reads chips from 902-928 Mhz, perfect for bib chips.
• 8 Antenna Ports


Data Sheet
